Our Manometers

Compare the key features of our manometers to decide which model best suits your needs:

Measurement Range

0.5 kPa – 200 kPa

1.0 kPa – 600 kPa

1.0 kPa – 800 kPa

Measurement Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is greater

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Maximum Total System Pressure

10 bar

20 bar

20 bar

Temperature Limitations

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +45°C

Recommended Service Interval

Every 12 months

Every 12 months

Every 12 months

Price

£1,495.00 + VAT

£1,495.00 + VAT

£1,750.00 + VAT

Measurement Range

0.5 kPa – 200 kPa

Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is greater

Maximum Allowable System Pressure

10 bar

Recommended Ambient Conditions

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Recommended Service Interval

Every 12 months

Price

£1,495.00 + VAT

Measurement Range

1.0 kPa – 600 kPa

Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Maximum Allowable System Pressure

20 bar

Recommended Ambient Conditions

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Recommended Service Interval

Every 12 months

Price

£1,495.00 + VAT

Measurement Range

1.0 kPa – 800 kPa

Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Maximum Allowable System Pressure

20 bar

Recommended Ambient Conditions

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +45°C

Recommended Service Interval

Every 12 months

Price

£1,750.00 + VAT

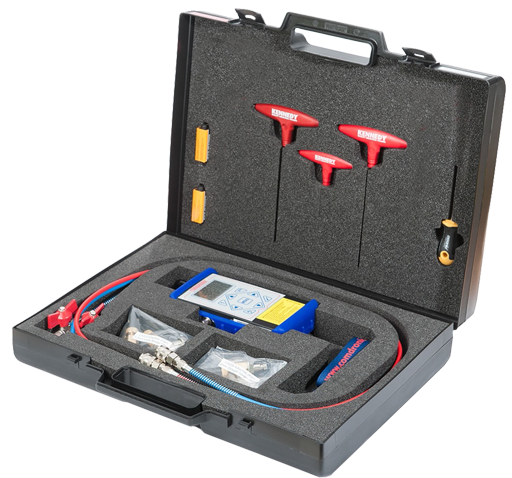

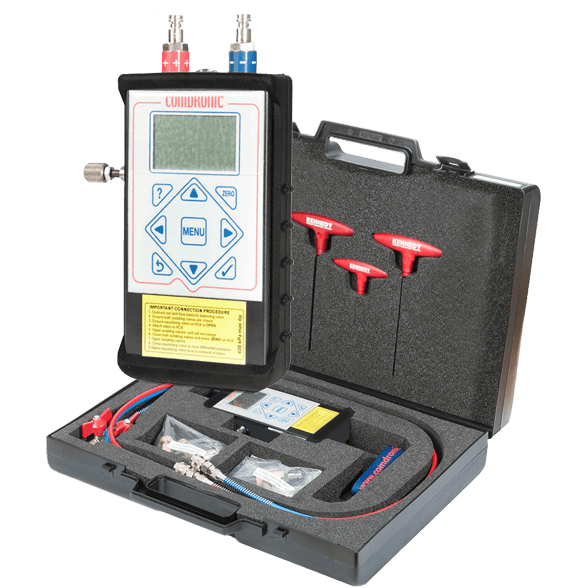

Everything you need to start taking readings

Our manometer handsets are supplied in a robust carry case, complete with quick-release connection hoses; Binder-style connection adaptors; hex keys; a lanyard; two batteries; an instruction manual; a quick-start guide plus a factory calibration certificate. Everything you need to be able to get up-and-running.

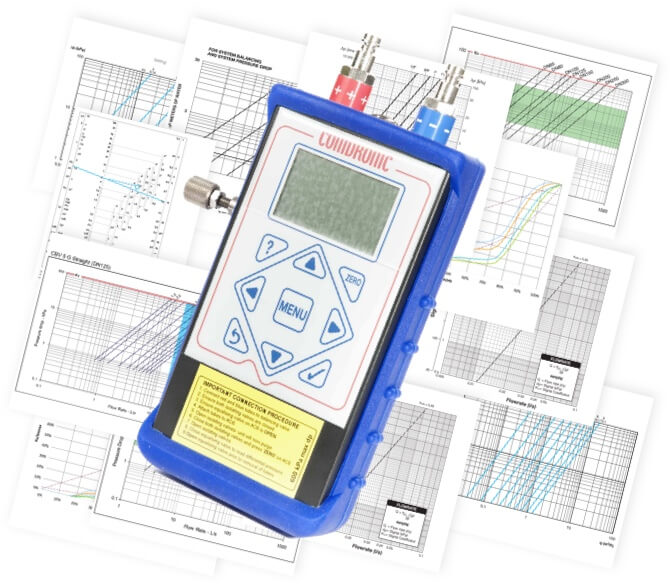

Loaded with the performance profiles of over 5,000 valves

Our extensive valve database is continually being updated as new valves are introduced onto the market. Valve data files are updated whenever a handset is serviced by us.

Servicing, Repairs & Calibration

In order to receive prolonged and consistent performance from your electronic manometer, we recommend that it should be serviced and calibrated on an annual basis.

As far as repairs are concerned, even the most extreme cases of damage can be repaired by our skilled technicians. Send us a box of bits if you want, and we’ll take it from there…
