Extensive Valve Database – At Your Fingertips!

The performance characteristics of over 6,000 valves – from 80+ manufacturers – are pre-programmed into the AC7-HP+ and this extensive knowledge-base is continually being updated as new valves are introduced onto the market. Valve data files are automatically updated whenever an AC7-HP+ is serviced by us.

Simplicity

A nine-button navigation pad allows simple access to the easy-to-follow menu system and state-of-the-art software allows direct reading of flowrate, differential pressure, percentage of design flow and percentage of target flow. Display backlights ensure that on-screen data is always easy to read, even in the darkest of areas.

Sophistication

The use of tried-and-tested electronics; industry-leading pressure-sensors; highly successful mechanics; bespoke firmware; and an extensive on-board database of valves deliver a powerful, flexible, accurate, easy-to-use tool for the discerning commissioning engineer.

Everything You Need

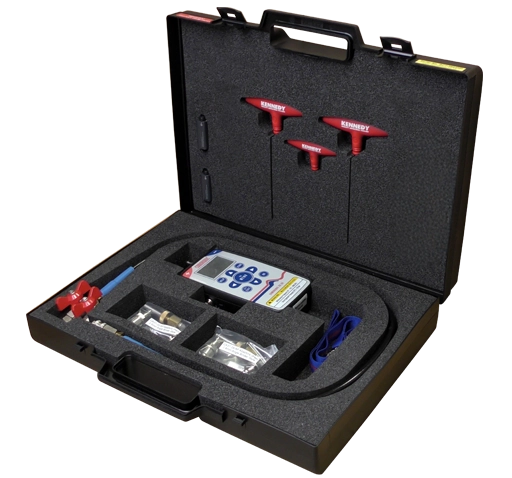

The AC7-HP+ Kit Comprises:

1 x carry case, including profiled foam inserts
1 x high-pressure AC7 handset, 1.0 kPa to 800 kPa
1 x pair of 20 bar connection tubes – 1 metre long
1 x pair of angle-pattern, ‘standard’ (2.8mm/3.3mm diam.) Binder-style adaptors
1 x pair of angle-pattern, ‘slim’ (2.0mm diam.) Binder-style adaptors
1 x set of T-handle hex keys (3mm, 4mm & 5mm)
1 x screwdriver bit-holder plus PH1 bit
1 x lanyard
1 x strainer maintenance kit
2 x 9V batteries
1 x quick-start guide
1 x instruction manual
1 x factory calibration certificate

AC7-HP+ Manometer Technical Specification

Measurement Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Hysteresis = 0.2% span

Maximum Range

1.0 kPa to 800 kPa

Maximum Total System Pressure

20 bar

Display Options

DP & Flow Display — shows differential pressure and flow, along with details of the target valve/device. Normally the most appropriate display option when taking measurements from fixed-orifice & variable-orifice balancing valves.

Advanced Display — shows more complex commissioning data and may be preferred to the DP & Flow Display if automatic balancing valves are being measured or if a system of proportional balancing is being adopted.

DP Only Display — only shows the measured differential pressure – in large text – and may be preferred when the AC7 is being used as a simple manometer.

Velocity (Flushing) Display — shows the derived velocity – in both metric (m/s) and imperial (ft/s) units – and may be preferred when fluid velocities are being measured for the purposes of system flushing.

Languages

Choose between English, French, Italian & Spanish for the displaying of available menu options.

Security PIN Code

As per user-preference, set an optional security PIN Code, which will asked for after every battery change.

Units

For Differential Pressure, choose your preferred units from: kPa, psi, bar, cmH2O, IWGA (inches water gauge), Ft HD (feet head) or Pa.

For Flow, choose your preferred units from: l/s, l/m, l/h, USGPM, UKGPM, m3/h, m3/m or m3/s.

Valve Database

Over 6,000 valves and measuring devices from 80+ manufacturers.

As per user-preference, create a ‘preferred manufacturers’ list to speed valve selection.

How the AC7-HP+ Compares

Compare the key features of our manometers

Ambient Temperature Limitations

+2C to +35C

+2C to +35C

+2C to +45C

+2C to +45C

Maximum Total System Pressure

10 bar

20 bar

10 bar

20 bar

Range of Operation

0.5 kPa – 250 kPa

1.0 kPa – 800 kPa

0.5 kPa – 250 kPa

1.0 kPa – 800 kPa

Measurement Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is the greater

+/- 1% of reading or +/- 0.2 kPa, whichever is the greater

+/- 1% of reading or +/- 0.1 kPa, whichever is the greater

+/- 1% of reading or +/- 0.2 kPa, whichever is the greater

Price

£1,650.00 + VAT

£1,650.00 + VAT

£1,800.00 + VAT

£1,800.00 + VAT

Measurement Range

0.5 kPa – 250 kPa

Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is the greater

Maximum Allowable System Pressure

10 bar

Recommended Ambient Conditions

+2C to +35C

Recommended Service Interval

Every 12 months

Price

£1,650.00 + VAT

Measurement Range

1.0 kPa – 800 kPa

Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is the greater

Maximum Allowable System Pressure

20 bar

Recommended Ambient Conditions

+2C to +35C

Recommended Service Interval

Every 12 months

Price

£1,650.00 + VAT

Measurement Range

0.5 kPa – 250 kPa

Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is the greater

Maximum Allowable System Pressure

10 bar

Recommended Ambient Conditions

+2C to +45C

Recommended Service Interval

Every 12 months

Price

£1,800.00 + VAT

Measurement Range

1.0 kPa – 800 kPa

Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is the greater

Maximum Allowable System Pressure

20 bar

Recommended Ambient Conditions

+2C to +45C

Recommended Service Interval

Every 12 months

Price

£1,800.00 + VAT
