Extensive Valve Database – At Your Fingertips!

The performance characteristics of over 5,000 valves – from 70+ manufacturers – are pre-programmed into the AC6-SP and this extensive knowledge-base is continually being updated as new valves are introduced onto the market. Valve data files are automatically updated whenever an AC6-SP is serviced by us.

Simplicity

A nine-button navigation pad allows simple access to the easy-to-follow menu system and state-of-the-art software allows direct reading of flowrate, differential pressure, percentage of design flow and percentage of target flow. Display backlights ensure that on-screen data is always easy to read, even in the darkest
of areas.

Sophistication

The use of tried-and-tested electronics; industry-leading pressure-sensors; highly successful mechanics; bespoke firmware; and an extensive on-board database of valves deliver a powerful, flexible, accurate, easy-to-use tool for the discerning commissioning engineer.

Everything You Need

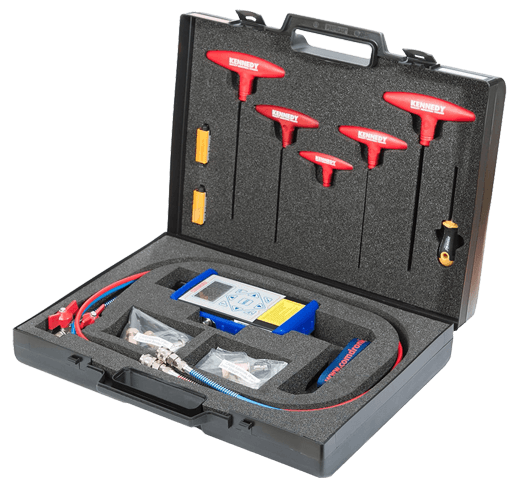

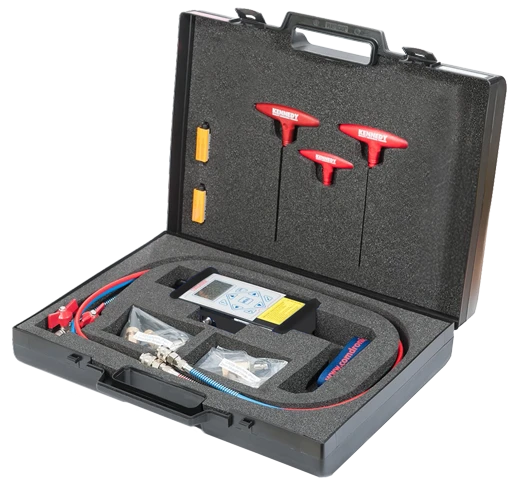

The AC6-SP Kit Comprises:

1 x carry case, including profiled foam inserts
1 x standard-pressure AC6 handset, 0.5 kPa to 200 kPa
1 x protective rubber boot for the AC6 handset
1 x pair of 10 bar connection tubes – 2 metre long
1 x pair of angle-pattern, 2.8mm diameter Binder-style adaptors
1 x pair of angle-pattern, 2.0mm diameter Binder-style adaptors
1 x set of T-handle hex keys (3mm, 4mm & 5mm)
1 x screwdriver bit-holder plus PH1 bit
1 x lanyard
1 x strainer maintenance kit
2 x 9V batteries
1 x quick-start guide
1 x instruction manual
1 x factory calibration certificate

AC6-SP Technical Specification

Measurement Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is greater

Hysteresis = 0.2% span

Measurement Range

0.5 kPa to 200 kPa

Maximum Total System Pressure

10 bar

Display Options

DP & Flow Display — shows differential pressure and flow, along with details of the target valve/device. Normally the most appropriate display option when taking measurements from fixed-orifice & variable-orifice balancing valves.

Advanced Display — shows more complex commissioning data and may be preferred to the DP & Flow Display if automatic balancing valves are being measured or if a system of proportional balancing is being adopted.

DP Only Display — only shows the measured differential pressure – in large text – and may be preferred when the AC6 is being used as a simple manometer.

Flow Only Display — only shows the derived flow – in large text – and may be preferred when fluid velocities are being measured for the purposes of system flushing.

Valve Storage

Up to 100 storage locations can be used for the storing of ‘live’ commissioning data while on site.

Help

Context-sensitive ‘Help’ can be displayed on screen at the press of a button.

Units

For Differential Pressure, choose your preferred units from: kPa, psi, bar, cmH2O, IWGA (inches water gauge), Ft HD (feet head) or Pa.

For Flow, choose your preferred units from: l/s, l/m, l/h, USGPM, UKGPM, m3/h, m3/m or m3/s.

For Velocity, choose your preferred units from m/s or f/s.

Valve Database

Over 5,000 valves and measuring devices from 70+ manufacturers.

How the AC6-SP Compares

Compare the features of our manometers and discover which version suits your requirements

Measurement Range

0.5 kPa – 200 kPa

1.0 kPa – 600 kPa

1.0 kPa – 800 kPa

Measurement Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is greater

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Maximum Total System Pressure

10 bar

20 bar

20 bar

Temperature Limitations

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +45°C

Recommended Service Interval

Every 12 months

Every 12 months

Every 12 months

Price

£1,495.00 + VAT

£1,495.00 + VAT

£1,750.00 + VAT

Measurement Range

0.5 kPa – 200 kPa

Accuracy

+/- 1% of reading or +/- 0.1 kPa, whichever is greater

Maximum Allowable System Pressure

10 bar

Recommended Ambient Conditions

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Recommended Service Interval

Every 12 months

Price

£1,495.00 + VAT

Measurement Range

1.0 kPa – 600 kPa

Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Maximum Allowable System Pressure

20 bar

Recommended Ambient Conditions

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +35°C

Recommended Service Interval

Every 12 months

Price

£1,495.00 + VAT

Measurement Range

1.0 kPa – 800 kPa

Accuracy

+/- 1% of reading or +/- 0.2 kPa, whichever is greater

Maximum Allowable System Pressure

20 bar

Recommended Ambient Conditions

Line Fluid (at sensor): +2°C to +50°C Ambient: +2°C to +45°C

Recommended Service Interval

Every 12 months

Price

£1,750.00 + VAT
